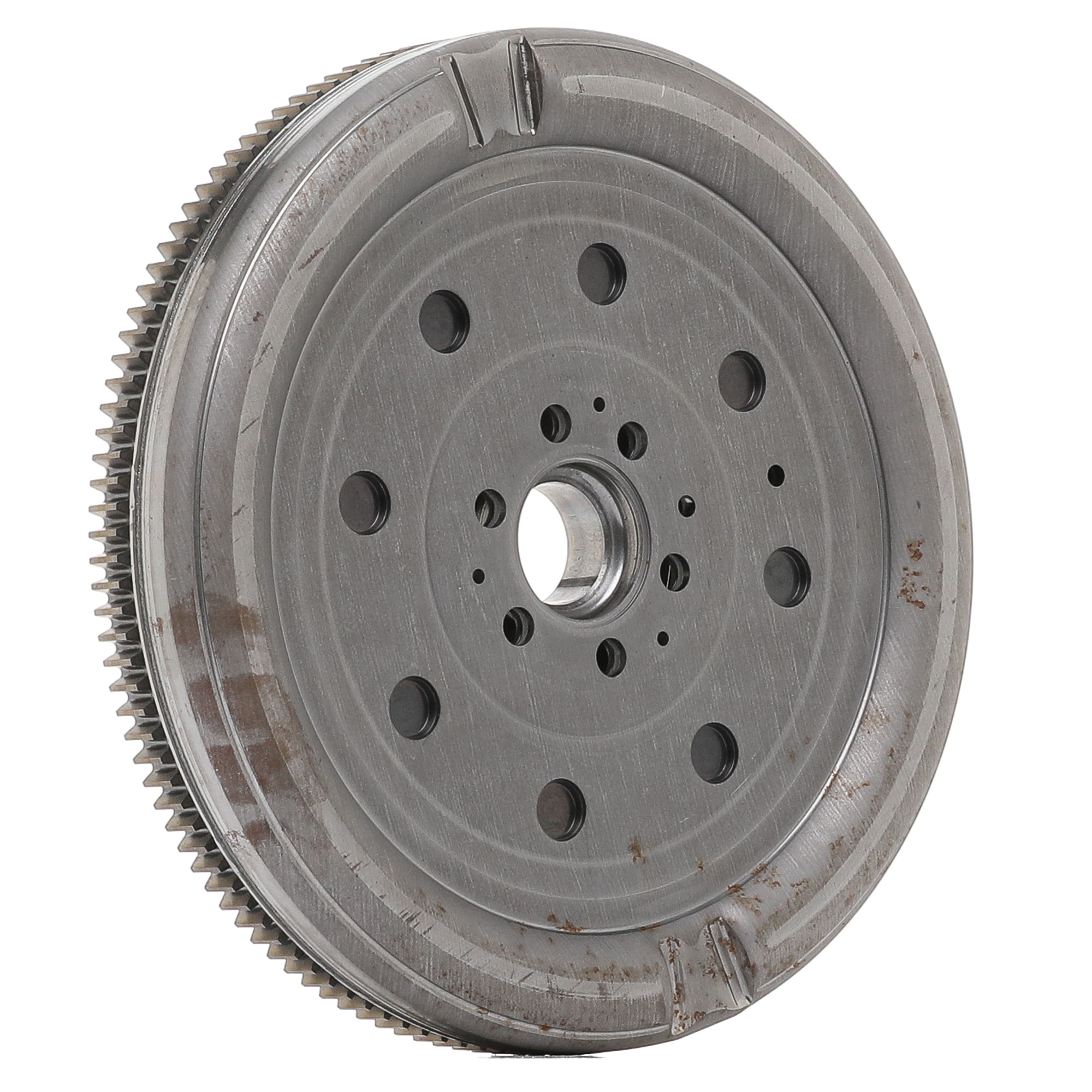

Replace a Spare part Clutch flywheel – a defective one or if the limit of use has been already reached. Find out useful information about Clutch flywheel
Faults of flywheel
defects in the seat under the flange of the crankshaft;
worn or damaged teeth on the flywheel;
damage to the work surface for the clutch disc;
worn or damaged threads in fastening holes;
flywheel runout.
Symptoms of flywheel faults
engine rounds increase disproportionately to speed;
slipping clutch;
the clutch trails;
tight gearshift;
the occurrence of a burning smell in the cabin;
the gear shift is accompanied by strange sounds in gearbox;
noise when you press the clutch pedal;
vibration on the clutch pedal.
Causes of flywheel faults
systematic driving at low engine speeds;
frequent motor overheating and jamming;
gaps in the operation of the ignition and injection;
driving style;
exceeding the part service life;
enhanced vibration due to the deformation of the driveline components.
Diagnosis of flywheel
You will be able to conduct accurate diagnosis only on a special equipment. If the flywheel is assembled, you will be able to run only a superficial inspection. So, you need to note the outer diameter of the primary and secondary flywheels, by using colored markers. The norm is when the flywheels are turned against each other by hand, maintaining the same distance turns both left and right. Furthermore, the secondary flywheel must return independently to its original position. If the secondary flywheel turns over 10 millimeters, replacement should be performed.
Repair and replacement of the flywheel
If you are able to detect the wear of teeth on the ring gear, just replace the ring gear, and do not forget to check, adjust and possibly repair the starter and wiring. With low flywheel outrun treat the surface on a lathe. If the outrun strength is significant, replacement is required. To replace the flywheel, you will need:
remove the gearbox, and then the clutch pressure plate cover and clutch disc;
unscrew six bolts, previously fixing flywheel to avoid rotation;
