# 22-8473

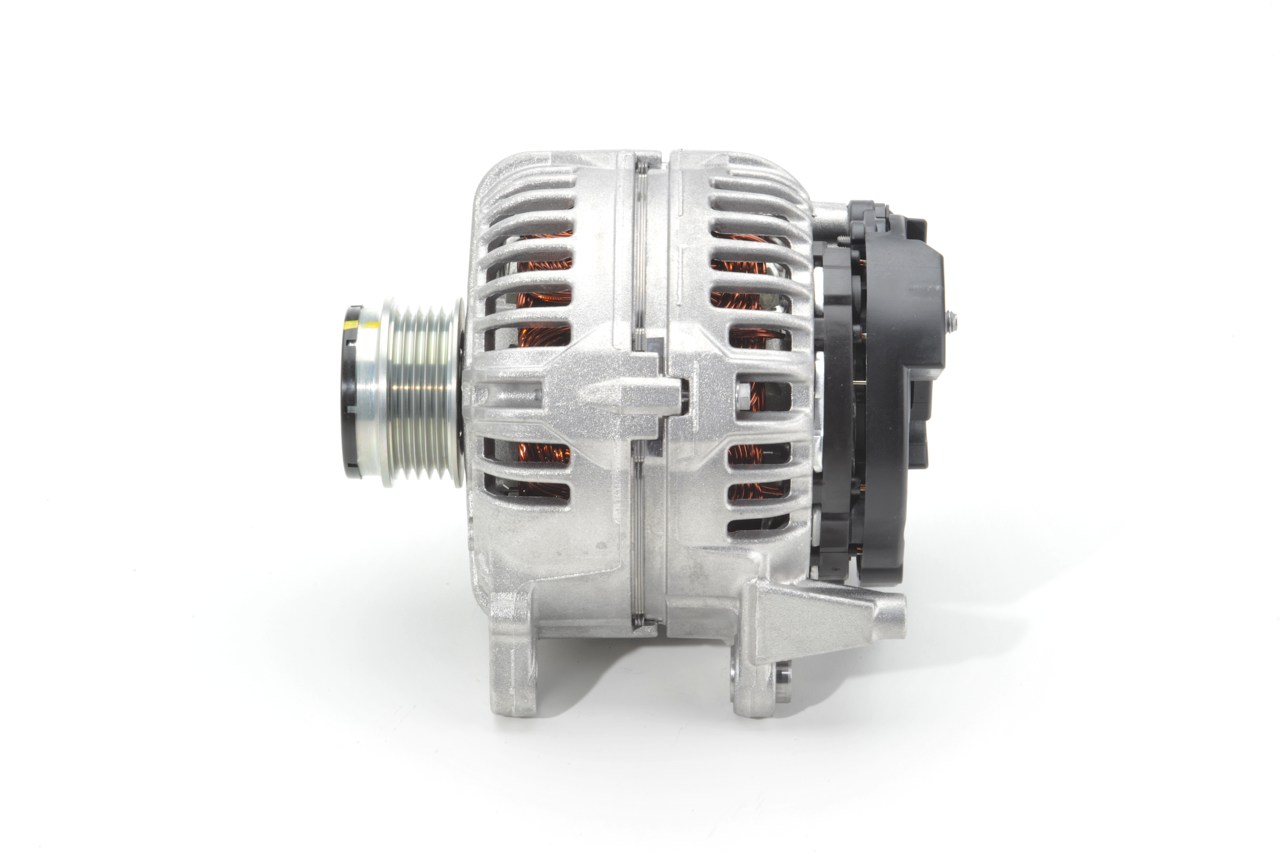

BOSCH 0 124 515 197 Alternator 14V, 120A, excl. vacuum pump, Ø 57,2 mm
Article №: 0 124 515 197
Alternator
£ 433,28
incl. 20% VAT, excl. delivery costs
Secure transaction
Your payment is secure
With an encrypted payment process, no third party can access your credit card details and personal data, and so your security and privacy is ensured.
Check the OE number
free delivery
Return and exchange
14 days
Standard time for returning an item is 14 days
Safe Order
100 days
For only £ 3,95, you extend the return time for the items you purchased to 100 days
Save on delivery
from £ 130
Free shipping within the UK applies to orders over £ 130 and excludes bulky items, tyres, or core parts
Fast delivery
Shipping methods
Experts recommend the following substitute parts:
-
- Alternator Charging Current [A]: 120
- Pulleys: with belt pulley, with freewheel belt pulley
- Voltage [V]:
![Alternator 14 Voltage [V]](https://cdn.pkwteile.de/uploads/icons/product/parameter/pkw/gl/6.png)
14 - Rated Voltage [V]: 14
- Belt Pulley Ø [mm]: 57
- Number of ribs: 5
- Number of grooves: 5
- Vehicle Main Current: for vehicles with 12V main current
- Position/Degree: R 90
- Rotation Direction: Clockwise rotation
- Alternator Type: excl. vacuum pump
- Connector/Clamp: without connection for speed sensor
- Fastening Type: 3-point attachment, Double Pivot Lever
- Clamp: B+, B+ (M8), L - DFM
- Bore Diameter 1 [mm]: 8
- Weight [kg]: 6,675
- Number of mounting bores: 4
- Number of threaded holes: 2
- Thread Size: M8
- Distance from belt pulley to alternator [mm]: 30
- Condition: New
-
- Alternator Charging Current [A]: 120
- Pulleys: with freewheel belt pulley
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 55,8
- Number of grooves: 5
- Clamp: B+ (M8)
- Quality: Valeo New
- Number of mounting bores: 4
- Mounting Angle [degrees]: -90
- Condition: New
-
- Alternator Charging Current [A]: 120
- Pulleys: with freewheel belt pulley
- Voltage [V]: 14
- Belt Pulley Ø [mm]: 56
- Number of ribs: 5
- Plug Type ID: 0121
- Vehicle Main Current: for vehicles with 12V main current
- Clamp: M8 B+, L - DFM
- Bore Diameter 1 [mm]: 8
- Length 3 [mm]: 61,0
- Net weight [kg]: 6,76
- Length 4 [mm]: 14,0
- Condition: Remanufactured
-
- Alternator Charging Current [A]: 120
- Pulleys: with freewheel belt pulley
- Voltage [V]: 12
- Belt Pulley Ø [mm]: 56,0
- Number of grooves: 5
- Clamp: B+ (M8)
- Quality: +Line Pro
- Number of mounting bores: 4
- Mounting Angle [degrees]: -90
- Condition: New
-
- Alternator Charging Current [A]: 120
- Pulleys: with freewheel belt pulley
- Voltage [V]: 14
- Belt Pulley Ø [mm]: 56
- Number of grooves: 5
- Plug Type ID: B+L,DFM
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 2
- Alternatively
- Distance from belt pulley to alternator [mm]: 37
- Alternative Repair Kit: 210007
- Condition: New
-
- Alternator Charging Current [A]: 120
- Pulleys: with freewheel belt pulley
- Voltage [V]: 14
- Belt Pulley Ø [mm]: 56
- Number of grooves: 5
- Plug Type ID: B+,L,DFM
- Rotation Direction: Clockwise rotation
- Number of mounting bores: 2
- for OE number: 028903031AX
- Condition: New
Item Alternator includes the following components:
- 1 - Alternator Regulator (F 00M 144 136);
- 1 - Alternator Freewheel Clutch (F 00M 147 724);
- 1 - Rectifier, alternator (F 00M 133 246);
- 1 - Drive Bearing, alternator (F 00M 990 411);
- 1 - Slip Ring Bearing, alternator (F 00M 990 405);
- 1 - Stator, alternator (F 00M 130 101);
- 1 - Rotor, alternator (F 00M 131 661);
- 1 - Protective Cap, alternator (F 00M 196 012);
Alternator 0 124 515 197 BOSCH
- Alternator Charging Current [A]: 120
- Pulleys: with freewheel belt pulley
- Voltage [V]: 14
- Belt Pulley Ø [mm]: 57,2
- Number of grooves: 5
- Rotation Direction: Clockwise rotation
- Alternator Type: excl. vacuum pump
- Fastening Type: Double Pivot Lever
- Recommended additional repairs: V-Belt/V-Ribbed Belt
- Length [mm]:
![BOSCH 0 124 515 197 172 Length [mm]](https://cdn.pkwteile.de/uploads/icons/product/parameter/pkw/gl/203.png)
172
- Alternator BOSCH
- Number of order 0 124 515 197
- Trade numbers BOSCH NCB1 (>) 14V 70/120A
- Our price: 433,28 £
- Condition New
