# 49-8659

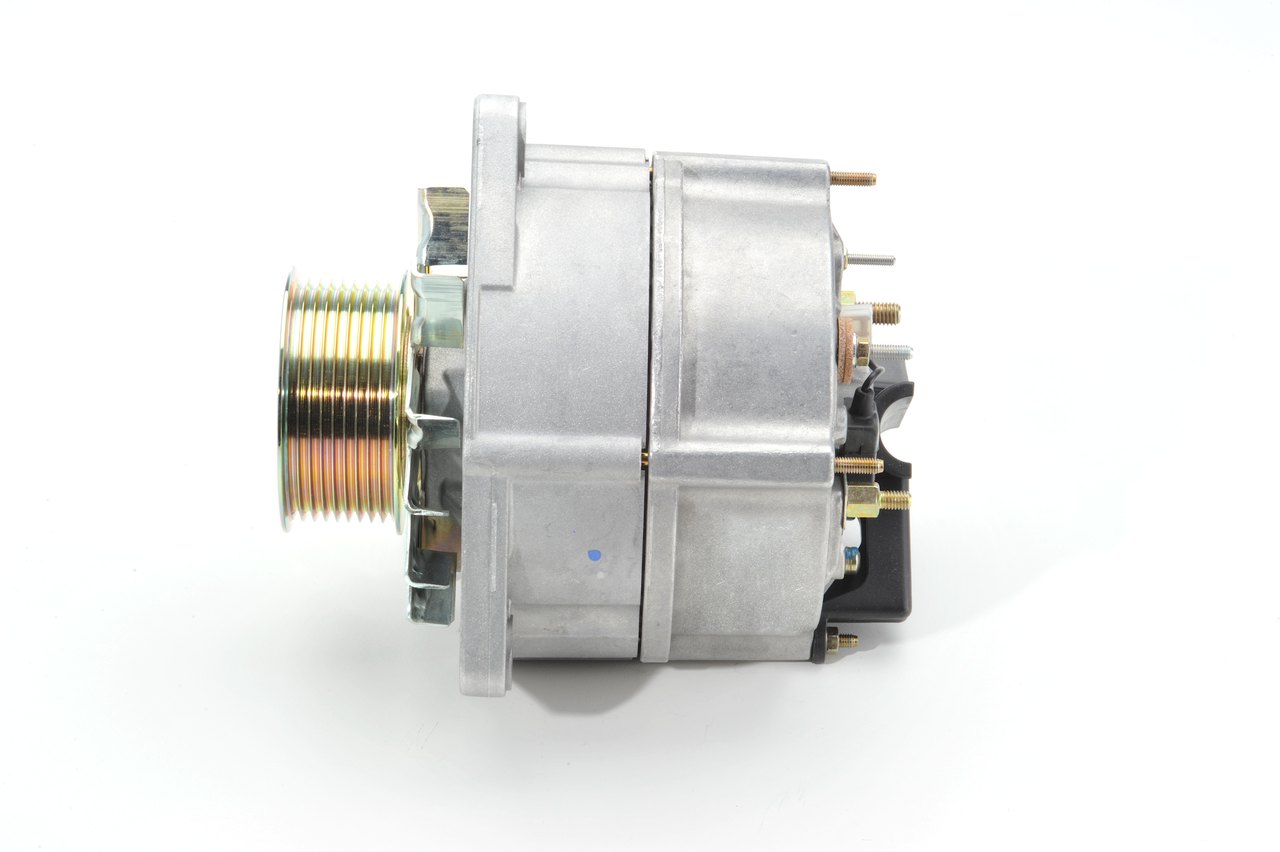

BOSCH 6 033 GB3 019 Alternator 28V, 80A, excl. vacuum pump, Ø 76,8 mm
Article №: 6 033 GB3 019
Alternator
£ 626,88
incl. 20% VAT, excl. delivery costs
Secure transaction
Your payment is secure
With an encrypted payment process, no third party can access your credit card details and personal data, and so your security and privacy is ensured.
Check the OE number
free delivery
Return and exchange
14 days
Standard time for returning an item is 14 days
Safe Order
100 days
For only £ 3,95, you extend the return time for the items you purchased to 100 days
Save on delivery
from £ 130
Free shipping within the UK applies to orders over £ 130 and excludes bulky items, tyres, or core parts
Fast delivery
Shipping methods
Experts recommend the following substitute parts:
-
- Alternator Charging Current [A]: 80
- Pulleys: with multi-belt pulley
- Voltage [V]:
![Alternator 24 Voltage [V]](https://cdn.pkwteile.de/uploads/icons/product/parameter/pkw/gl/6.png)
24 - Rated Voltage [V]: 28
- Belt Pulley Ø [mm]: 76,5
- Number of grooves: 9
- Plug Type ID: B+(M8),D+(M4),W(M5)
- Vehicle Main Current: for vehicles with 24V main current
- Rotation Direction: Clockwise rotation, Anticlockwise rotation
- Alternator Type: excl. vacuum pump
- Fastening Type: 3-point attachment
- Bore Diameter 1 [mm]: 10
- Number of mounting bores: 3
- Number of threaded holes: 0
- Distance from belt pulley to alternator [mm]: 113
- Condition: New
-
- Alternator Charging Current [A]: 80
- Voltage [V]: 24
- Vehicle Main Current: for vehicles with 24V main current
- Net Weight [g]: 7260
- Condition: New
-
- Alternator Charging Current [A]: 80
- Voltage [V]: 24
- Vehicle Main Current: for vehicles with 24V main current
- Net Weight [g]: 7043
- Condition: New
-
- Alternator Charging Current [A]: 80
- Pulleys: with belt pulley
- Voltage [V]: 24
- Belt Pulley Ø [mm]: 72
- Number of ribs: 8
- Rotation Direction: Clockwise rotation
- Alternator Type: with transistorised regulator
- Weight [g]: 7500
- Version: Premium
- Connector type: Earth return, Grounded
- Quantity: 1
- Distance from belt pulley to alternator [mm]: 35
- Support plate diameter [mm]: 93,2
- Housing Diameter [mm]: 157
- Shaft diameter [mm]: 17
- Condition: New
-
- Alternator Charging Current [A]: 80
- Voltage [V]: 24
- Belt Pulley Ø [mm]: 72,0
- Number of grooves: 8
- Clamp: B+ (M8)
- Quality: +Line Original
- Number of mounting bores: 3
- Mounting Angle [degrees]: 60
- Condition: New
-
- Alternator Charging Current [A]: 80
- Pulleys: with multi-belt pulley
- Voltage [V]: 28
- Belt Pulley Ø [mm]: 76,8
- Number of grooves: 9
- Exchange Part
- Rotation Direction: Clockwise rotation
- Alternator Type: excl. vacuum pump
- Fastening Type: 3-point attachment
- Recommended additional repairs: V-Belt/V-Ribbed Belt
- Length [mm]:
![Alternator 200 Length [mm]](https://cdn.pkwteile.de/uploads/icons/product/parameter/pkw/gl/203.png)
200 - Distance from belt pulley to alternator [mm]: 110
- Condition: Remanufactured
Item Alternator includes the following components:
- 1 - Alternator Regulator (6 033 RD0 002);
- 1 - Fan, alternator (1 126 610 065);
- 1 - Gasket / Seal (6 033 RC0 001);
- 1 - Carbon Brush, alternator (1 127 014 022);
- 1 - Rectifier, alternator (1 127 320 753);
- 1 - Drive Bearing, alternator (1 120 905 103);
- 1 - Slip Ring Bearing, alternator (1 120 905 099);
- 1 - Stator, alternator (6 033 GD3 093);
- 1 - Rotor, alternator (6 033 GD2 079);
- 1 - Repair Set, alternator clamp (1 127 011 071);
- 1 - Mounting Set, alternator rotor (1 127 011 160);
- 1 - Suppression Capacitor (0 290 800 036);
Alternator 6 033 GB3 019 BOSCH
- Alternator Charging Current [A]: 80
- Pulleys: with multi-belt pulley, with belt pulley
- Voltage [V]: 28
- Belt Pulley Ø [mm]: 76,8
- Number of grooves: 9
- Rotation Direction: Clockwise rotation
- Alternator Type: excl. vacuum pump
- Fastening Type: Single pivoted lever
- Recommended additional repairs: V-Belt/V-Ribbed Belt
- Length [mm]: 174
- Alternator BOSCH
- Number of order 6 033 GB3 019
- Trade numbers BOSCH NL1(R) 28V 10/80A
- Our price: 626,88 £
- Condition New
Similar to OE numbers (only for comparison)
- DAF 1516501R
